Large Off Grid 23,400 Watt 48V OutBack Solar Power Electric System – Approx 3450kWh Monthly

Large Off Grid 23,400 Watt 48V OutBack Solar Power Electric System – Approx 3450kWh Monthly

$39,353.18

This is a large, estate size system. It will output Approximately 3450kWh per month. Check your monthly utility usage for total kWh per month to compare. Whatever size system you need, we can put it together for you.



Included Products

Items Quantity Price
REC Solar N-PEAK Series 325 Watt Monocrystalline Solar Panel X72 $211.00
100 Foot #10 AWG MC4 Extender Cable Male/Female Rated for 1000 Volts DC X6 $75.00
50 Foot #10 AWG MC4 Extender Cable Male/Female Rated for 1000 Volts DC X6 $45.75
MidNite Solar MNPV6-250 Solar Array Combiner X4 $114.60
MidNite Solar 300 Volts 15 Amps DC Circuit Breaker X12 $28.22
MidNite Solar MNSR-1000 Heyco Strain Relief Connector With Locknut X12 $2.76
MidNite Solar Surge Protection Device MNSPD-300-DC X4 $92.97
Disconnect Tool for MC4 Connectors X1 $4.50
Outback Radian GS8048A-01 8,000 Watt Advanced Inverter/Charger X3 $3,709.33
Outback GSLC-PV-300VDC Prewired Load Center for Two Charge Controllers X1 $1,375.00
OutBack GSLC175 Prewired Load Center 120/240 X2 $1,008.33
Outback Power HUB10.3 10 Port Communications Manager X1 $275.00
MATE3 Flexware Mounting Bracket X1 $28.60
Outback Power MATE3S System Display and Controller for UL 1741 SA Compliance X1 $436.33
OutBack PNL-80-300VDC, 80 Amp, 300VDC, 1/4” Stud Terminals Circuit Breaker X2 $44.00
OutBack PNL-125-300VDC, 125 Amp, 300VDC, 1/4” Stud Terminals Circuit Breaker X1 $44.00
Square D 82254 200A Disconnect Switch X1 $1,383.00
Inverter Cables Red/Black Pair, #2/0 AWG, 5 Foot UL Listed MTW X6 $100.78
MidNite Solar MNBCB-BUSBAR Battery Combiner Busbar X1 $122.52
MidNite Solar MNBCB 1000/100 1000 Amp Battery Combiner Box X1 $631.16
MidNite Solar Surge Protection Device MNSPD-300-AC X3 $92.97
MidNite Solar Surge Protection Device MNSPD-115 X1 $92.97
OutBack Power FM100-300VDC-AFCI FLEXmax 100A MPPT Solar Charge Controller X4 $931.33

Out of stock

SKU: NAZ-ESTATE-OGK-OB-22.68KW Category: Tags: , , ,

Description

This is a large, estate size system. Check your monthly utility usage for total kWh per month to compare. Whatever size system you need, we can put it together for you.

NOTE: This kit does not come with a mounting system for the solar panels or a battery bank. It does not include shipping from the manufacturer and does not include installation. My aim is to help you get the solar system that’s right for you and help you save thousands buy buying the system you want then hire an installer.

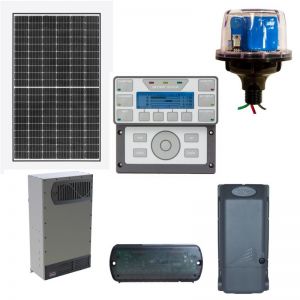

This kit is one of the easiest ways to get started with an Estate-size off-grid solar system. It comes with 23.4 kW of REC brand solar panels, an OutBack Power Radian power panel with three Radian GS8048A-01 inverters, 120/240 Volts AC Bypass assembly, three GSLC load centers, four FLEXmax 100 Amp 300V MPPT solar charge controllers, MATE3s system controller, along with the necessary equipment to connect everything together. The OutBack Power panels are not designed for expansion. If you need the option to grow your system at a later date, please contact us and we can custom design a system that will allow you to produce more power.

Basic Specifications:

Total solar panel power: 23,400 Watts
Output power: 24,000 Volt-Amps (VA)
Output voltage: 120/240 Volts AC (selectable)
Nominal DC input voltage: 48 Volts DC

Warranty Information:

REC 325 Watt Solar Panel: 20 year product warranty, 25 year power warranty.
OutBack Power Radian: 5 year warranty.
OutBack Power FM100-300VDC-AFCI: 5 year warranty
MidNite Solar MNPV6-250: 5 year warranty.

Note: Every solar system installation is different. While this kit contains all the essential components, you will have to provide some of your own materials. For example, you may want to purchase some wire nuts for splicing wire (you may or may not need to splice wire depending upon your installation).

Due to weight and size some or all of this system will ship by freight so online shipping prices will not be correct. Please call 800-228-8800 for an accurate shipping price.





Additional information

Weight 2000 lbs
