OutBack Power 8kW Radian AC Coupling Bundle

Give the peace of mind that comes with having backup power in the event of a utility outage. The Radian Series AC Coupling bundles from OutBack enable existing grid-tied systems to tap into the flexibility and freedom of battery backup in the face of the evolving energy landscape.

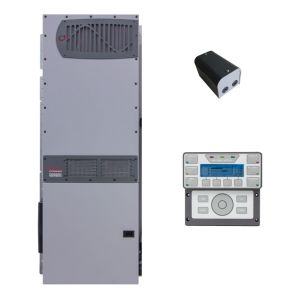

AC Coupling Bundle Contents:

• Radian Series GS8048A Inverter/Charger
• GSLC175-120/240 Load Center
• MATE3s (and mounting bracket)
• Generator Protection Kit
• 30A Dual Pole Breaker (for connecting the grid-tied inverter inside the GS load center)

Bundle Features & Highlights:

• Frequency shifting for complete control of the grid-tied inverter’s output
• Best voltage and current protection for all types of batteries
• Best protection and control for when you need a backup generator
• OutBack Power service and support

GS4048A Specifications:

• Continuous Output Power: 8000 VA
• Input Voltage: 48 VDC
• AC Output Voltage: 120/240 VAC
• Pure Sine wave Output
• Overload Capability (5 seconds): 12,000 VA
• Overload Capability (30 minutes): 9,000 VA
• Idle Power Consumption: 34 Watts
• Battery Charger Maximum DC Output: 115 ADC
• Field Upgradeable Firmware
• Non-Volatile Memory
• Weight: 125 lbs.
• Dimensions (H x W x D): 28″ x 16″ x 8.7″
