Description
SimpliPhi Power
AccESS Energy Storage Solution
With Schneider Electric

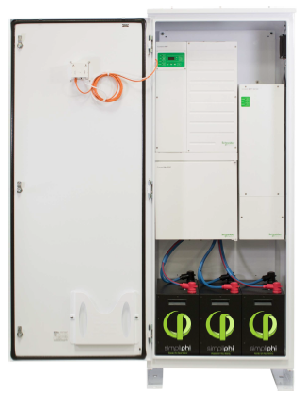

SimpliPhi Power has partnered with Schneider Electric to develop a pre-wired, pre-programmed plug-and-play unit for battery backup and off grid applications. These units are NEMA 3R outdoor rated, and are designed for quick and easy install. Available capacities: 10.5kWh, 14 kWh. Available and ready to ship directly from Manufacturer – no certification required!
Applications:
- New installations
- Retrofit AC Coupled applications (w/o charge controller) for existing grid-tie systems
- DC Coupled applications (with charge controller) for battery backup
- Outdoor installation
Features:
- Pre-programmed ESS for backup power, peak-shaving, and self-consumption of solar PV
- Internal transfer switch automatically disconnects from the grid during power outages and provides standby power for critical circuits
- Outdoor rated enclosure can be free-standing, or pad-mounted
- Advanced LFP batteries with a 10,000 cycle / 10-year warranty
- Manufacturer warranty on inverter/charger and components
- 98% round trip efficiency
- System monitoring by System Control Panel or Combox with remote system monitoring by web browser or mobile device app
- No cobalt , thermal regulation, cooling, or risk of fire
- Extended operating temperature
- Options below include adding Solar MPPT charge controller for a DC-Coupled or Off Grid application, as well as Automatic Generator control for additional standby power
- Manufactured in USA
*NOTE: As of Nov 1, 2018, all Schneider AccESS units automatically include the SCP pre-installed. If the Combox is preferred, the order can be adjusted, and the Mfr will substitute it in with a cost adder.
Specifications for AccESS with Schneider Conext XW Pro or XW+6848:
Installation tips:
- Ships on its side, in a secure wooden crate
- Batteries are shipped separately, and installed after lifting the unit upright and out of crate (The cables will be wired to the power panel already, however the installer will need to connect each positive and negative to the battery)
- Unit is 700 lbs without the batteries
- Can be installed indoors (garage, basement, utility room) or outdoors (on concrete pad)
- No heating/cooling necessary
- No wall mounting
- Basic SimpliPhi settings come pre-programmed
Because of weight, this system ships by freight so online shipping prices will not be correct. Please call 800-228-8800 for a shipping quote.
